Structured Cabling Systems

INFINITE SYSTEMS SOLUTIONS

Future‑Ready Cabling Infrastructure for Smart Buildings

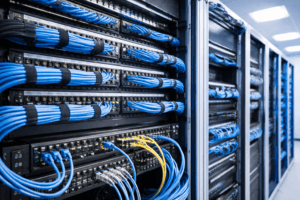

Structured cabling systems Philippines from Infinite Systems provide the organized copper and fiber infrastructure that supports data networks, voice, CCTV, access control, Wi-Fi, Building Management Systems, and other connected building technologies.

Our solutions include Cat6 and Cat6A data cabling, fiber optic backbones, voice and telephony cabling, riser and inter-building links, data racks, patch panels, cable management, outlets, labeling, testing, and documentation.

Infinite Systems can design, supply, install, test, certify where required, document, expand, and maintain structured cabling infrastructure for offices, BPO facilities, commercial buildings, condominiums, hospitals, schools, industrial sites, server rooms, and multi-building developments across the Philippines.

Organized Clean racks, labels & patching

Tested Verified cable performance

Scalable Ready for future expansion

Integrated IT, CCTV, access & BMS

---

CABLING FOUNDATION

What Is a Structured Cabling System?

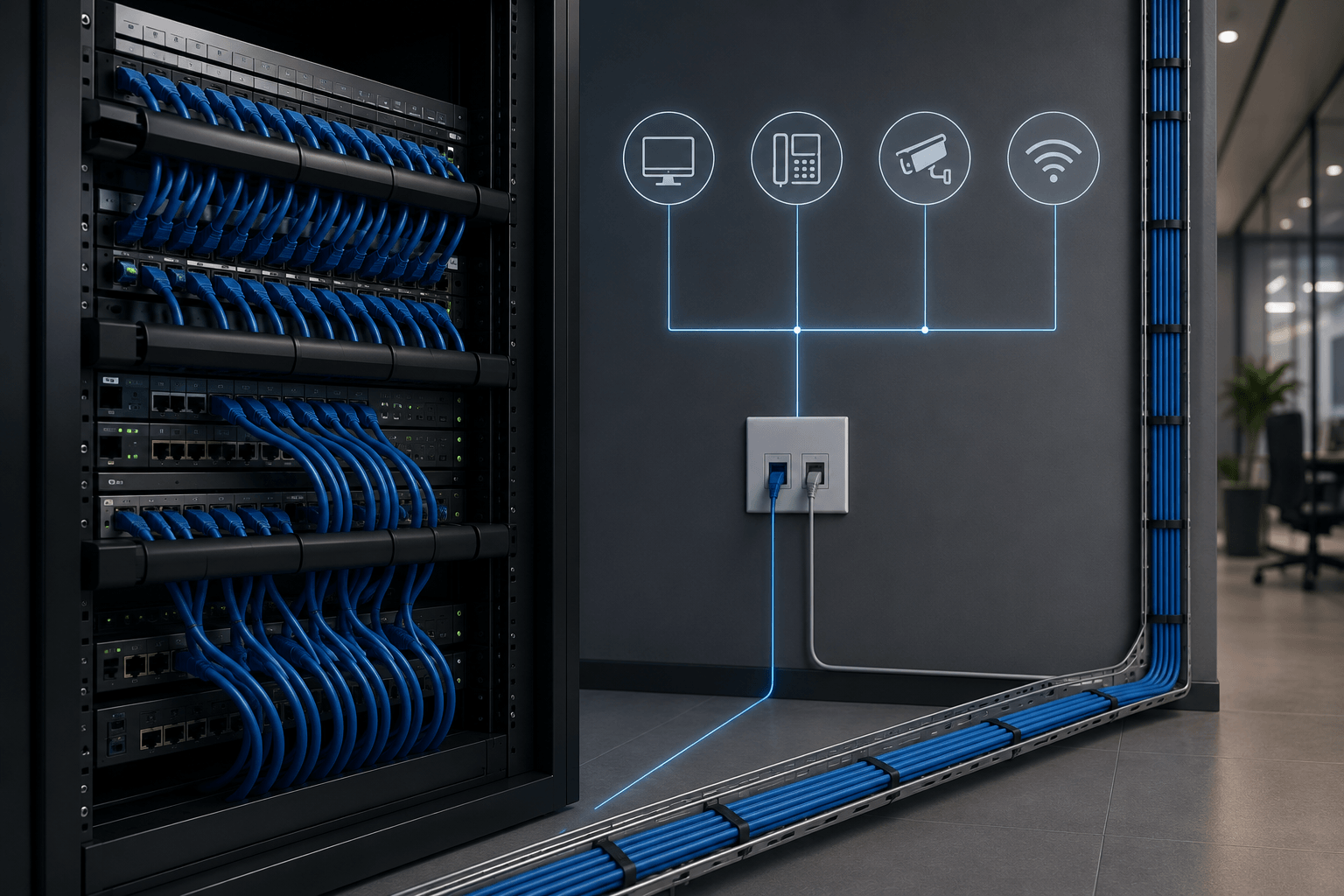

A structured cabling system is a standardized physical network that organizes copper and fiber connections throughout a building or campus. It typically includes horizontal cabling, backbone cabling, patch panels, racks, outlets, termination hardware, pathways, and cable-management components.

Instead of installing separate ad hoc cabling for each new system, a structured approach provides a consistent infrastructure that can support computers, phones, wireless access points, IP cameras, access-control devices, BMS controllers, and other network-connected equipment.

Horizontal Cabling Connects telecommunications rooms or cabinets to user outlets, cameras, access points, readers, phones, and other endpoint devices.	Backbone Cabling Connects floors, telecommunications rooms, server rooms, buildings, and network distribution points using copper or fiber as appropriate.
Racks & Patch Panels Organize cable termination, patching, switches, fiber enclosures, and network equipment in a serviceable layout.	Testing & Documentation Verify installed links, label endpoints, and document the infrastructure for future maintenance and expansion.

---

CABLING TYPES

Copper and Fiber Structured Cabling

Infinite Systems designs both copper and fiber optic infrastructure. The right medium depends on distance, bandwidth, PoE requirements, electromagnetic conditions, network architecture, redundancy, and future expansion.

Cat6 Data Cabling A common choice for enterprise LAN, VoIP, Wi-Fi access points, IP CCTV, access control, and other Ethernet-connected devices.	Cat6A Cabling Suitable for projects requiring higher-performance copper infrastructure, increased bandwidth, or more demanding network applications.
Single-Mode Fiber Commonly used for longer-distance backbone connections, inter-building links, and high-capacity network infrastructure.	Multimode Fiber Suitable for selected shorter backbone and equipment-room connections depending on network design and transceiver requirements.
Voice & Telephony Cabling Support IP telephony and selected traditional voice applications within the building’s communications infrastructure.	Backbone & Riser Cabling Connect floors, network rooms, equipment rooms, and separate buildings through properly planned vertical and campus pathways.

---

RACKS & CABLE MANAGEMENT

Organized Data Racks, Cabinets and Patch Panels

Structured cabling is only effective when termination and patching are organized. Infinite Systems can supply and install data cabinets, network racks, patch panels, fiber enclosures, cable managers, equipment shelves, and related infrastructure.

Data Racks Floor-standing racks for larger communications and server-room installations.

Wall Cabinets Compact cabinets for smaller network or ELV distribution points.

Patch Panels Centralize copper and fiber terminations for organized patching.

Cable Management Maintain routing, bend radius, labeling, and serviceability.

---

SERVER ROOMS & DATA CENTERS

Structured Cabling for Server Rooms and Data Centers

Server rooms and data centers require disciplined cable routing, labeling, separation, patching, fiber management, rack planning, and documentation to remain manageable as equipment and network requirements expand.

High-Density Cabling Organize large numbers of copper and fiber links.

Fiber Backbone Support high-capacity network and inter-rack connectivity.

Rack Planning Coordinate patching, switches, servers, power, and cable pathways.

Documentation Maintain port, rack, cable, and endpoint records.

---

POWER OVER ETHERNET

Structured Cabling for PoE Devices

Modern building systems increasingly use Power over Ethernet to carry network data and electrical power over the same copper connection. Proper cable selection, pathway planning, termination, switch sizing, and thermal considerations are important for reliable PoE operation.

IP Cameras Network video and power over structured cabling.

Wi-Fi Access Points Support wireless infrastructure from centrally powered switches.

IP Phones Carry network voice and device power where supported.

Security Devices Support selected access-control, intercom, and other PoE-connected devices.

---

BUILDING SYSTEMS BACKBONE

Structured Cabling for Integrated Building Systems

Structured cabling supports much more than desktop computers. A well-designed copper and fiber backbone can carry network connectivity for CCTV, access control, time attendance, PA/BGM, Wi-Fi, BMS, automation, and other IP-based building systems.

CCTV & Video Surveillance Provide reliable network connectivity for IP cameras, NVRs, VMS servers, switches, and monitoring systems. View CCTV Systems	Access Control Systems Connect networked access controllers, readers, gateways, servers, and management platforms. View Access Control Systems
Time Attendance Systems Support network-connected attendance terminals, enrollment stations, and workforce-management servers. View Time Attendance Systems	PA / BGM & Network Audio Support IP-based paging, network audio controllers, management stations, and selected distributed audio systems. View PA / BGM Systems
Building Management Systems Carry supported Ethernet and IP communications between BMS controllers, gateways, servers, and supervisory systems. View Building Management Systems	Automation & Smart Building Systems Provide communications infrastructure for selected PLC, IoT, gateway, monitoring, and automation applications. View Automation Solutions

---

STANDARDS & TESTING

Proper Installation, Labeling and Cable Testing

Structured cabling installations should follow recognized cabling practices for cable routing, separation, bend radius, termination, labeling, patching, testing, and documentation. Infinite Systems designs and installs copper and fiber systems with serviceability and long-term performance in mind.

Testing and certification requirements are defined according to the project specification, cable category, installed components, manufacturer requirements, warranty conditions, and client acceptance criteria.

Termination Properly terminate copper and fiber components according to the selected system.

Labeling Identify cables, ports, racks, panels, and endpoints clearly.

Testing Verify continuity and applicable link performance.

Documentation Provide organized records for future troubleshooting and expansion.

---

NETWORK UPGRADES

Structured Cabling for Existing Buildings

Existing facilities can often be upgraded without replacing every cable immediately. Infinite Systems can assess present racks, copper links, fiber backbones, patch panels, pathways, labeling, and network distribution to identify what can be retained and where new infrastructure is required.

Audit Existing Cabling Review pathways, terminations, labeling, racks, and cable condition.

Upgrade the Backbone Add or replace fiber and distribution links where higher capacity is needed.

Reorganize Racks Improve patching, labels, cable management, and serviceability.

---

APPLICATIONS

Structured Cabling Systems Philippines for Different Facilities

Cabling design should reflect floor area, device density, network architecture, available pathways, bandwidth requirements, PoE loads, server-room layout, redundancy requirements, and expected future expansion.

Corporate Offices & BPO Data, VoIP, Wi-Fi, CCTV, access control, and enterprise network infrastructure.	Commercial Buildings Shared building networks, security systems, tenant connections, BMS, and communications.	Condominiums & Mixed Use Backbone, CCTV, access, administration networks, BMS, and common-area connectivity.
Hospitals & Healthcare Data networks, IP communications, CCTV, access, Wi-Fi, and building systems.	Schools & Universities Campus backbones, classrooms, laboratories, Wi-Fi, CCTV, and administrative networks.	Industrial Facilities Enterprise networks, production support, security, automation, fiber, and industrial communications.
Data Centers High-density copper and fiber infrastructure with organized rack connectivity.	Hotels & Hospitality Guest networks, IP phones, Wi-Fi, CCTV, access control, and building systems.	Multi-Building Campuses Fiber backbone and communications infrastructure between separate facilities.

---

KEY BENEFITS

Why Invest in Professional Structured Cabling?

Reliable Connectivity Proper cable selection, installation, termination, and testing help provide a dependable physical network.	Easier Troubleshooting Organized labels, patch panels, racks, and documentation make faults easier to locate.
Cleaner Infrastructure Replace unmanaged cable bundles with structured routing, patching, and cable management.	Future Expansion Make moves, additions, and system expansion easier as the facility grows.
Multi-System Support Support IT, Wi-Fi, CCTV, access control, BMS, telephony, and other connected technologies.	Better Documentation Give IT and facility teams clear information about cable routes, ports, racks, and endpoints.

---

PROFESSIONAL INSTALLATION

Structured Cabling Installation Philippines

Infinite Systems provides structured cabling installation Philippines services for new buildings, tenant fit-outs, office relocations, server-room upgrades, security-system projects, network expansions, and existing-building retrofits.

Proper implementation requires coordination of cable pathways, trays, conduits, racks, patch panels, outlets, copper and fiber termination, labeling, testing, documentation, network equipment, and other trades within the building.

Site Survey	Cabling Design	Material Supply	Installation
Termination	Labeling	Testing	Documentation

---

CABLING TECHNOLOGIES

Cabling Components Selected for the Project

Infinite Systems works with established structured cabling technologies and can recommend suitable copper cable, fiber, patch panels, jacks, racks, cabinets, cable management, enclosures, and accessories based on required performance, project specification, compatibility, and budget.

Copper Cat6, Cat6A, patch panels, jacks, and patch cords.

Fiber Single-mode, multimode, fiber panels, connectors, and accessories.

Racks & Cabinets Data racks, wall cabinets, shelves, and cable managers.

Pathways Cable trays, conduits, raceways, and related support infrastructure.

---

WHY INFINITE SYSTEMS?

Your Structured Cabling and Building Systems Partner

Infinite Systems does more than install data cables. Because we also work with CCTV, access control, BMS, PA/BGM, time attendance, automation, and other ELV technologies, we can plan the cabling infrastructure around the actual systems that will use it.

Local Engineering Site assessment, pathway planning, rack layout, installation, and testing.	Clean Installation Organized racks, cable management, labels, and documented terminations.	Multi-System Knowledge IT, CCTV, access, BMS, Wi-Fi, automation, and networked building systems.
Copper & Fiber Horizontal, backbone, riser, inter-building, and server-room infrastructure.	Retrofit Capability Audit and upgrade existing racks, cabling, fiber, and pathways.	Lifecycle Support Troubleshooting, testing, re-termination, expansion, and maintenance.

---

PREVENTIVE MAINTENANCE

Maintain and Expand Your Cabling Infrastructure

Structured cabling can remain in service for many years, but racks, labels, patching, connectors, pathways, fiber terminations, and frequently modified links should still be reviewed as networks and building systems evolve. Infinite Systems can provide inspection, testing, re-termination, troubleshooting, documentation updates, and expansion support for existing cabling infrastructure.

Physical Inspection Check cable, rack, panel, pathway, and termination condition.

Cable Testing Test selected links when troubleshooting or validating infrastructure.

Re-Termination Correct damaged or unreliable terminations where practical.

Expansion Add new outlets, racks, backbone links, fiber, and building systems.

View Building Systems Preventive Maintenance Services

---

GOT QUESTIONS?

Frequently Asked Questions — Structured Cabling Systems Philippines

Answers to common questions about Cat6, Cat6A, fiber optic cabling, data racks, testing, CCTV and access-control cabling, installation, and maintenance.

What is structured cabling and why does it matter?

Structured cabling is an organized network of copper and fiber cables, patch panels, racks, outlets, and related components that carries data, voice, video, and building-system communications. A properly planned system improves reliability, organization, troubleshooting, and future expansion.

Do you install both copper and fiber optic cabling?

Yes. Infinite Systems installs Cat6 and Cat6A copper cabling as well as single-mode and multimode fiber for horizontal, backbone, riser, inter-building, and server-room applications.

What is the difference between Cat6 and Cat6A?

Both are structured copper cabling categories, but Cat6A is designed for higher-performance applications and may be preferred where greater bandwidth, stronger performance margins, or more demanding network requirements justify it. Final selection should be based on the network design and project specification.

Can structured cabling support CCTV and access control?

Yes. IP CCTV cameras, access-control controllers, biometric terminals, Wi-Fi access points, BMS devices, and many other networked systems can use structured cabling infrastructure. Exact cable and network requirements depend on the selected equipment.

Do you supply data racks and patch panels?

Yes. Infinite Systems can supply and install network racks, wall cabinets, copper and fiber patch panels, cable managers, shelves, and related equipment required to organize the installation.

Do you test installed network cables?

Yes. Installed cabling is tested according to the project scope. The required test method and certification documentation depend on cable type, performance category, specified standards, and client acceptance requirements.

Can you upgrade an existing cabling system?

Yes. Existing racks, patch panels, copper cables, fiber links, outlets, and pathways can be assessed to determine which infrastructure can be retained, reorganized, repaired, or upgraded.

Can you install fiber between different buildings?

Yes. Fiber optic cabling is commonly used for inter-building and campus backbone connections. The correct fiber type, strand count, pathway, termination, and protection depend on distance, bandwidth, topology, and site conditions.

Does structured cabling require maintenance?

Structured cabling has few moving parts, but patching, connectors, racks, labels, pathways, and frequently modified links can deteriorate or become disorganized over time. Periodic inspection, testing, re-termination, and documentation updates can help keep the infrastructure serviceable.

Still have questions about Structured Cabling Systems?

Talk to our engineering team about your floor layout, number of data points, racks, fiber backbone, CCTV, access control, Wi-Fi, server room, and future network requirements.
