INFINITE SYSTEMS INSIGHTS:
Visitor Parking QR Access: Guest Registration, Vehicle Authorization and Barrier Integration
Visitor parking QR access can connect guest pre-registration, host approval and temporary vehicle authorization to the parking barrier instead of relying entirely on handwritten lists and manual guard calls. The workflow should be planned around visitor validation, lane safety, temporary permissions and security exceptions.
PLANNING PRINCIPLE
Authorize the right visitor, vehicle, lane and time window while maintaining a clear exception process for security personnel when a credential cannot be validated normally.
01 / REGISTER
Visitor & Vehicle
Capture the required guest, host and vehicle information before arrival.
02 / APPROVE
Host & Security
Route the visit through the appropriate host, tenant or security approval process.
03 / VALIDATE
QR & Vehicle
Validate the temporary credential and applicable vehicle information at the assigned lane.
04 / EXPIRE
Temporary Access
Automatically end the authorization after the approved visit period where supported.
01 / SYSTEM CONTEXT
How Visitor Parking QR Access Works
A host or authorized tenant registers the expected visitor and vehicle. After the required approval, the system can generate a temporary QR credential or another supported authorization method.

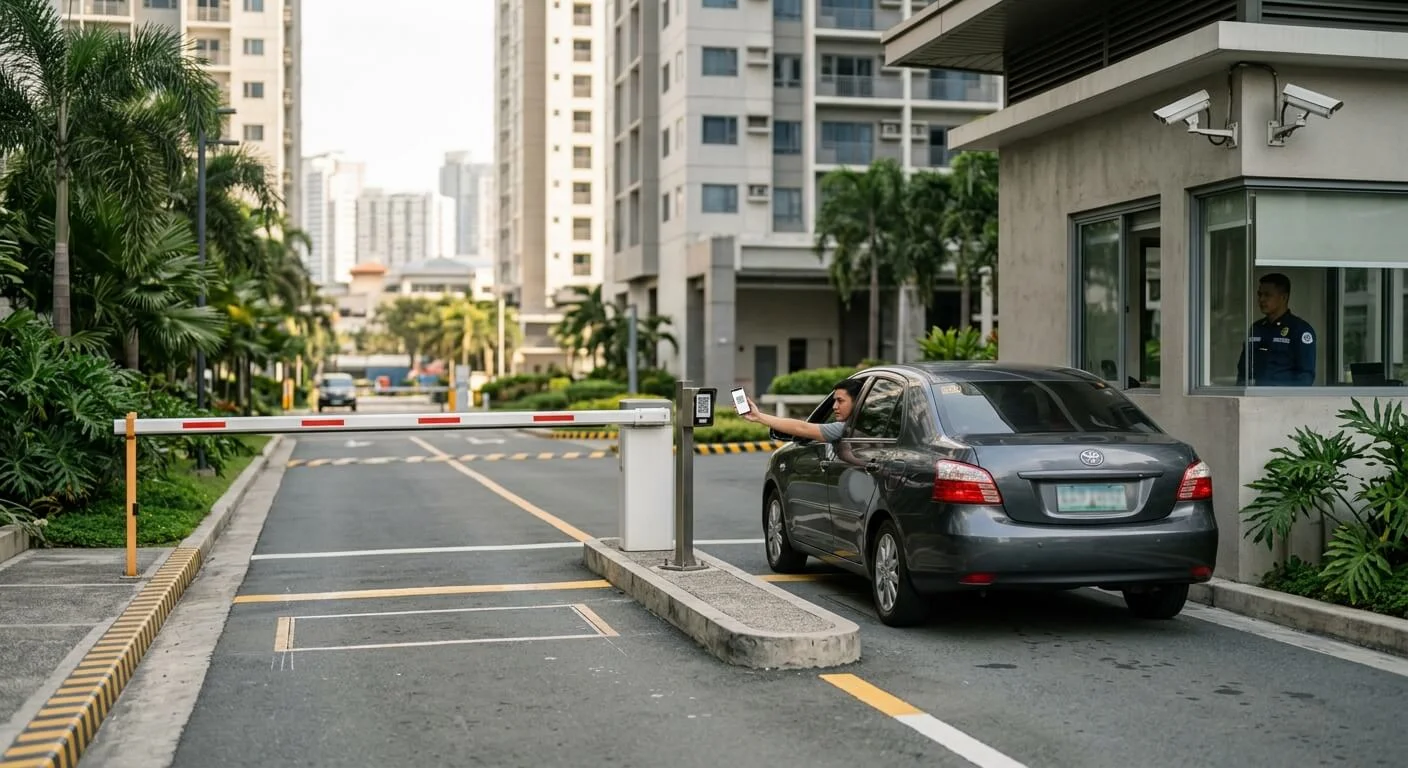

At arrival, the credential can be validated at a compatible parking lane device or by security personnel. When the visit is valid and the lane conditions are satisfied, the parking system can permit the barrier to open.
02 / WORKFLOW DESIGN
Build the Visitor Workflow Before Selecting Hardware
The hardware should support the actual visitor process. Define what happens before arrival, at the gate and after the approved visit rather than selecting the QR reader or barrier first.
Pre-Register
Capture expected guest, host, vehicle and visit details required for the approved workflow.
Approve
Route the request to the correct host, tenant or security process before issuing temporary access.
Validate
Check the temporary credential and applicable vehicle information at the assigned entrance.
Expire
Remove or invalidate temporary access after the approved visit window where supported.
PLANNING NOTE
Define exception cases before deployment, including early arrivals, expired credentials, changed vehicles, unreadable QR codes and visitors who were not successfully pre-registered.
03 / CREDENTIAL OPTIONS
QR, LPR and RFID Serve Different Users
Different vehicle-access technologies can serve different user groups. QR credentials are useful for temporary visitors because they can be issued for a defined visit period. Long-range RFID can be suited to registered residents, tenants or employees, while license plate recognition can identify a vehicle plate where the site, camera position and system support it.
QR Access
Useful for temporary credentials issued to visitors for a defined date or time window.
RFID Access
Can support registered vehicles or users with compatible long-range identification.
LPR
Can support plate-based identification or verification where the site and system are suitable.
Mixed Workflow
Different credential types can be combined when the platform supports the required access logic.
04 / SYSTEM INTEGRATION
Connect Visitor Management and Parking
A visitor management system can coordinate guest registration, approval and temporary permissions, while the parking barrier system controls the physical vehicle lane.
Integration should clearly define what happens when the visitor arrives early, the credential has expired, the QR code cannot be read, the vehicle has changed or security needs to manually verify the visitor.
Visitor System
Manages registration, approval and visitor information according to the configured workflow.
Credential
Provides the temporary QR or other supported authorization presented at the entrance.
Lane Controller
Processes the access event and interfaces with compatible barrier equipment.
Security Exception
Provides an approved manual verification or override process when automated validation fails.
05 / LANE SAFETY
Lane Safety Still Comes First
QR validation should not compromise vehicle or pedestrian safety. Vehicle loops, photocells and other compatible detection devices should be positioned according to the barrier equipment and lane design.
Credential readers should also be positioned so drivers can interact with them without creating an unsafe stopping position or requiring unnecessary movement around the vehicle.
06 / DATA & AUDIT
Visitor Data and Access Audit Considerations
A visitor parking workflow may involve guest details, vehicle information, host information, access timestamps and credential events. Only information needed for the approved process should be collected.
Access to visitor and vehicle records should follow the organization’s privacy requirements, retention policies and authorized-user controls. The project should also define which events need to be available for security review.
Visitor Record
Define which visitor and host information is necessary for registration and approval.
Vehicle Record
Capture only the vehicle information required to support the approved parking workflow.
Access Events
Determine which validation and barrier events should be recorded for operational review.
User Permissions
Limit access to visitor records and system functions according to assigned responsibilities.
07 / PROJECT WORKFLOW
Recommended Visitor Parking Project Workflow
A coordinated workflow helps align visitor management, QR credentials, parking barriers, lane safety and security procedures before installation.
Survey
Review gates, lanes, traffic flow, security procedures and existing systems.
Define
Establish visitor types, credentials, approval rules and access windows.
Design
Develop the visitor, credential, barrier and safety architecture.
Integrate
Coordinate visitor management, parking control and security workflows.
Test
Verify valid, expired, unreadable and exception access scenarios.
Commission
Validate lane operation, safety devices, user procedures and documentation.
08 / PROCUREMENT CHECKLIST
Visitor Parking QR Access Checklist
Before comparing solutions or requesting quotations, document the visitor workflow, lane conditions, credential requirements and integration scope.
Visitor & Credential
- Visitor registration process
- Host or tenant approval
- QR credential requirements
- Credential validity period
- Vehicle information
- Exception and manual verification process
Lane & Integration
- Parking barrier type and lane configuration
- QR reader location
- Vehicle detection and safety devices
- Visitor management integration
- LPR or RFID requirements
- Network and power requirements
Testing & Handover
- Valid credential testing
- Expired credential testing
- Unreadable QR scenarios
- Changed vehicle scenarios
- Manual override procedures
- System documentation and user training
PROCUREMENT NOTE
Compare proposals using the same visitor workflow, lane requirements, integration scope, safety requirements and commissioning criteria. This makes differences in equipment and implementation scope easier to identify.
09 / RELATED SOLUTIONS
Related Access and Parking Solutions
Visitor Management Systems
Coordinate visitor registration, approval and temporary access workflows for controlled facilities.
Parking Barrier Systems
Control vehicle entry and exit lanes with barrier equipment coordinated with the site access workflow.
10 / FAQ
Frequently Asked Questions
Can a visitor receive a QR code before arrival?
Yes. Supported visitor platforms can issue temporary credentials after the required pre-registration and approval process.
Can QR work together with LPR?
Yes. The exact logic depends on the platform, but QR can provide visit authorization while LPR can support plate-based identification or verification.
What happens if the QR code fails?
The design should include a controlled exception workflow such as guard verification, intercom assistance or reception approval.
Can the credential expire automatically?
Yes. Supported systems can restrict a temporary credential by date, time, lane or other configured permissions.
Can QR access be used for both entry and exit?
It can be supported where the selected system and workflow are designed for two-way vehicle access. Entry and exit rules should be defined separately during system design.
What should happen when a visitor arrives without a QR code?
The site should have a defined manual verification process, such as security confirmation, host approval or reception validation, rather than leaving the decision entirely undefined.
PLAN YOUR VISITOR PARKING SYSTEM
Plan a Controlled Visitor Parking Workflow
Infinite Systems can coordinate visitor registration, temporary credentials, parking barriers and compatible vehicle-access technologies around your actual gate operation, security procedures and site requirements.
