Balancing Cost, Security, and Efficiency in Access Control
Choosing between a tripod turnstile and a speed gate is not simply a question of price. The right choice depends on pedestrian traffic, security objectives, architectural requirements, available space, accessibility, credential technology, emergency egress strategy, and the level of integration required with other building systems.
For offices, factories, schools, condominiums, BPO facilities, data centers, hotels, and mixed-use developments in the Philippines, both technologies can provide reliable controlled entry when they are properly selected, installed, and integrated. This guide explains the practical differences so facility managers, consultants, contractors, and property developers can specify the right turnstile for each entrance.
Turnstile Systems Philippines
Infinite Systems supplies, installs, integrates, commissions, and maintains tripod turnstiles, speed gates, full-height turnstiles, and credential-based pedestrian access systems.

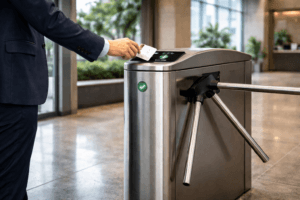

What Is a Tripod Turnstile?
A tripod turnstile is a waist-high pedestrian barrier with three rotating arms. After a valid credential is approved, the mechanism releases one passage cycle so the authorized user can move through. Once the passage is completed, the mechanism returns to its controlled position.
Mechanical Simplicity
Tripod mechanisms are generally straightforward, making them suitable for facilities that prioritize durability, controlled passage, and practical maintenance.
Compact Footprint
Waist-high cabinets can work well at employee entrances, schools, factories, warehouses, and other locations where architectural appearance is not the primary driver.
Credential Integration
RFID, biometric, mobile, and QR credentials can be used when the selected reader, controller, software, and turnstile interface are compatible.
Learn more about Tripod Turnstiles Philippines

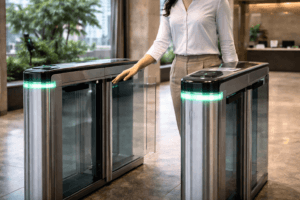

What Is a Speed Gate?
A speed gate is a motorized pedestrian access barrier that normally uses glass or acrylic swing or flap panels together with passage sensors. After authorization, the panels open to allow the user through and then close after the system detects a completed passage.
Architectural Appearance
Slim cabinets and transparent panels can better complement reception areas, corporate headquarters, premium condominiums, hotels, and client-facing lobbies.
Passage Sensors
Integrated sensor arrays can help identify passage status, detect obstruction, and manage gate closing behavior. Capabilities vary by model and configuration.
Wide-Lane Options
Many speed gate families offer wider lanes that can support wheelchair users, carts, strollers, deliveries, and other accessibility requirements when properly planned.
Learn more about Speed Gates Philippines

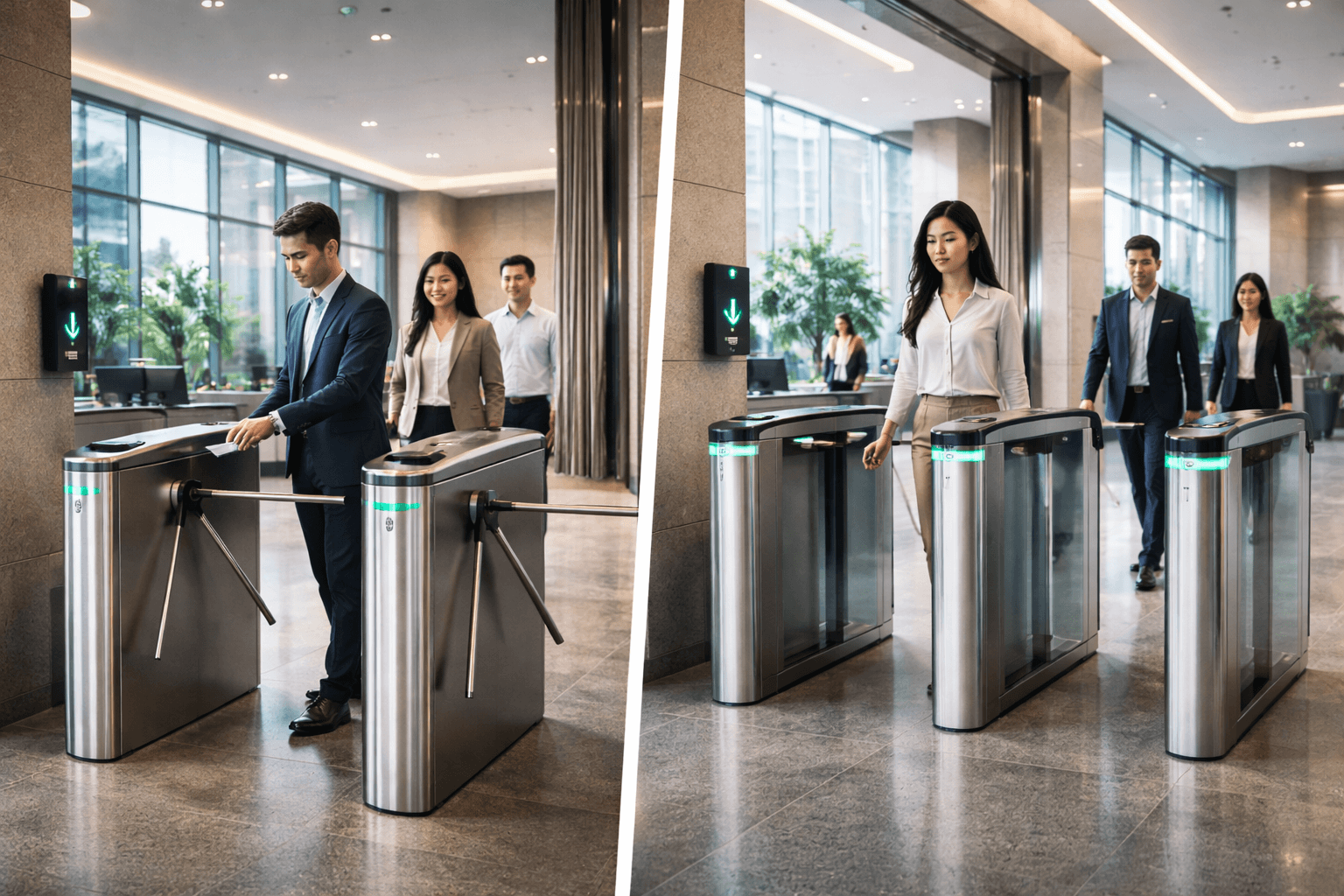

Tripod Turnstile vs Speed Gate: Key Differences
There is no universal winner. The better choice depends on how the entrance will actually be used. Instead of relying on fixed throughput or price numbers, compare the two systems across the project factors that matter most.
Tripod Turnstile
Best fit: factories, warehouses, schools, staff entrances, construction areas, and functional office access points.
Strength: practical mechanical barrier and comparatively simple operation.
Design: waist-high rotating arm mechanism.
Planning note: a separate accessible route may be required depending on the project layout and applicable accessibility requirements.
Speed Gate
Best fit: corporate lobbies, premium condominiums, hotels, BPO reception areas, and high-visibility entrances.
Strength: premium appearance with motorized panels and sensor-based passage management.
Design: glass or acrylic swing or flap barrier.
Planning note: wide-lane configurations can be incorporated for accessibility, deliveries, or larger passage requirements.

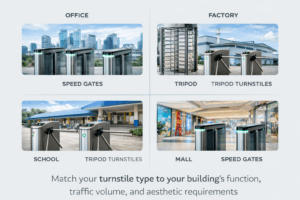

How to Choose the Right Turnstile for Your Building
1. Peak Pedestrian Demand
Review how many people arrive and leave during the busiest periods, not just the total number of employees or residents. Lane quantity should be based on actual peak-flow assumptions and the selected equipment performance.
2. Security Objective
Determine whether the goal is basic credential-controlled entry, stronger pedestrian separation, anti-passback enforcement, visitor control, or integration with other restricted areas.
3. Architectural Requirement
A premium reception lobby may prioritize slim cabinets and glass barriers, while a staff or industrial entrance may prioritize durability and serviceability.
4. Accessibility and Deliveries
Plan an appropriate accessible passage and consider wheelchairs, strollers, luggage, deliveries, carts, and emergency movement. The exact arrangement should be coordinated with the building design and applicable requirements.
5. Environment
Indoor, covered, semi-outdoor, and exposed locations require different equipment specifications. Confirm ingress protection, corrosion resistance, temperature limits, drainage, canopy coverage, and manufacturer installation requirements.
6. Lifecycle Support
Consider spare parts, local technical support, controller compatibility, software licensing, preventive maintenance, and the availability of technicians after commissioning.
Credential Technology Matters as Much as the Barrier
A turnstile is only one layer of the access-control workflow. The credential reader, access controller, database, software, network, power supply, and event logging must work together. Both tripod turnstiles and speed gates can be used with several authentication technologies depending on product compatibility.
Common for employees, tenants, students, and regular users.
Can strengthen identity verification where the chosen reader and workflow are appropriate.
Useful for organizations moving away from physical cards.
Useful for visitors, contractors, temporary users, and pre-registered guests.
For a broader credential and door strategy, see Access Control Systems Philippines.
Turnstiles Can Be Part of a Larger Security Workflow
For many commercial buildings, the turnstile should not operate as an isolated barrier. It can be coordinated with visitor management, elevator permissions, CCTV, door access, and other systems so one authorization event supports the wider building security process.
Visitor Management
Pre-approved guests can be issued temporary QR or other supported credentials for controlled lobby entry.
Elevator Integration
In compatible projects, turnstile authentication can be coordinated with elevator floor permissions or destination-control workflows.
CCTV Coordination
Video surveillance can provide visual context around access events, alarms, congestion, tailgating attempts, or security investigations.
Emergency Egress and Fire Alarm Interfacing
Turnstile installation must be coordinated with the building’s approved means of egress and life-safety strategy. Many turnstile systems provide inputs that can be used to release, unlock, retract, or drop the barrier when an appropriate emergency signal is received, but the required behavior depends on the selected equipment, building layout, fire alarm design, and authority requirements.
The turnstile should never be treated as a substitute for a properly designed exit route. Fire alarm interfacing, emergency release logic, power-failure behavior, accessible egress, and manual override should be reviewed during system design and commissioning.
Why Fixed Price and Throughput Numbers Can Be Misleading
Turnstile pricing varies significantly by brand, cabinet design, barrier type, lane width, sensor package, access controller, reader technology, software, civil works, cabling, electrical requirements, installation environment, shipping, integration, commissioning, and after-sales support. For that reason, a broad online price range should not be used as a final project budget.
Throughput also depends on more than the gate opening speed. Credential presentation time, biometric matching time, user behavior, visitor processing, security screening, lane width, direction changes, and the arrival pattern can all affect actual flow. Site-specific traffic planning is more useful than applying one universal persons-per-minute figure.
Typical Turnstile Project Process
Measure entrance width, floor conditions, pedestrian routes, power, network, and existing security systems.
Define lane quantity, accessible passage, reader locations, controller architecture, and integration points.
Coordinate civil works, anchoring, floor boxes, cabling, power, network, and turnstile alignment.
Connect readers, access controllers, software, visitor workflows, elevator interfaces, or other supported systems.
Test credentials, passage detection, alarms, emergency behavior, user permissions, and event logging.
Inspect mechanisms, sensors, readers, power supplies, communication, and software as part of planned maintenance.
Which One Should You Choose?
Choose a Tripod Turnstile When
The entrance is primarily functional, the site values durability and straightforward operation, the environment is a staff, school, industrial, or controlled back-of-house access point, and an accessible route can be properly planned.
Choose a Speed Gate When
The entrance is client-facing or architecturally important, smooth pedestrian flow is a major requirement, a wide-lane configuration is needed, or the project benefits from sensor-based passage management and a premium lobby appearance.
Some projects use both. A premium main lobby may use speed gates, while employee, service, school, factory, or secondary entrances use tripod turnstiles. The correct solution should be based on each access point rather than forcing one turnstile type across the entire property.
Frequently Asked Questions
Is a tripod turnstile more secure than a speed gate?
Not automatically. They use different barrier and detection approaches. Security performance depends on the selected model, sensors, controller logic, credential method, lane supervision, and how the entrance is operated.
Which is better for a corporate office lobby?
Speed gates are often preferred for premium office lobbies because of their architectural appearance and smooth passage, while tripod turnstiles remain practical for employee-only or secondary access points.
Can both systems use RFID cards and biometrics?
Yes, when the reader, access controller, software, and turnstile interface are compatible. Mobile and QR credentials can also be supported in suitable configurations.
Do I need a wide lane?
Many projects require an accessible passage or a wider route for wheelchairs, deliveries, carts, or luggage. The exact lane arrangement should be coordinated with the building layout and applicable accessibility requirements.
Can turnstiles integrate with elevator access control?
Yes, for compatible projects. Turnstile authentication can be linked to elevator floor permissions or destination-control workflows, but the interface method depends on the elevator and access-control systems involved.
How many turnstile lanes does a building need?
Lane quantity should be calculated from peak pedestrian demand, credential transaction time, arrival patterns, lane direction, accessibility, visitor traffic, and the performance of the selected equipment. A site-specific traffic assessment is better than a universal rule of thumb.
Explore Related Infinite Systems Solutions
Turnstile Systems
Speed Gates
Tripod Turnstiles
Access Control Systems
Turnstile and Elevator Integration
Turnstile FAQ
Need Help Choosing Between a Tripod Turnstile and Speed Gate?
Infinite Systems can assess your entrance layout, pedestrian traffic, credential technology, accessibility needs, security requirements, and integration points before recommending a turnstile configuration.
