Fire Alarm Interface Matrix: Cause-and-Effect Planning for Building Systems
A modern fire alarm system rarely operates in isolation. Alarm events may need to coordinate elevator recall, smoke-control equipment, selected door releases, access-control emergency modes, voice evacuation, dampers, fans and BMS monitoring. A fire alarm interface matrix defines what each initiating event is expected to make each connected system do.
PLANNING PRINCIPLE
Define the cause-and-effect sequence before programming and integrated testing.
Start with initiating events, affected zones, interfaced systems, required actions, signal paths, reset behavior and testing responsibilities. The interface matrix should then provide a common reference for design, installation, programming and commissioning.
01 / DEFINE
Initiating Events
Identify detectors, modules, sprinkler events and other approved inputs that can initiate a response.
02 / MAP
Cause & Effect
Define the required response, affected zones, interface path and expected equipment state.
03 / COORDINATE
Connected Systems
Coordinate elevators, HVAC, access control, voice evacuation, BMS and other affected building systems.
04 / COMMISSION
Test & Accept
Verify the complete signal path, receiving-system response, feedback, reset behavior and documented results.
01 / PROJECT CONTEXT
What Is a Fire Alarm Interface Matrix?
A fire alarm interface matrix is a project document that maps initiating events to required outputs and responses. It provides a structured way to describe what should happen when a particular fire alarm condition occurs and which connected systems are expected to respond.
A useful matrix identifies the source event, affected fire zone or location, receiving system, interface method, expected action, normal and alarm states, reset behavior and responsible party. This reduces ambiguity during system programming, coordination and integrated testing.
The initiating condition, such as a detector, manual station, sprinkler interface or other approved alarm event.
The approved cause-and-effect sequence that determines which outputs should operate.
The command, status or interface signal delivered to the affected building system.
DOCUMENTATION NOTE: The matrix should be coordinated with the approved fire and life-safety design and the requirements of the affected systems. It should not be treated as a generic programming template.
02 / BUILDING INTERFACES
Common Building Systems Connected to Fire Alarm
The exact interfaces vary by building type, system architecture and approved life-safety sequence. Common coordination points include the following:
ELEVATORS
Recall & Status
Fire alarm interfaces may initiate recall or provide other approved signals to the elevator control system. Exact functions depend on the elevator design and applicable life-safety sequence.
HVAC
Fans & Dampers
Selected AHUs, supply fans, exhaust fans, smoke-control fans and dampers may need to change state according to the approved mechanical fire strategy.
ACCESS CONTROL
Door Release
Selected electrically controlled doors or entrance devices may require an emergency release or other defined state. Security programming should be coordinated with egress requirements.
VOICE EVACUATION
Emergency Audio
Approved alarm events can trigger emergency audio, mute routine BGM and select emergency messaging zones where supported by the system design.
BMS
Monitoring
The BMS may monitor selected fire alarm statuses where compatible, while required life-safety control remains with the approved fire alarm architecture.
OTHER SYSTEMS
Project-Specific Interfaces
Additional systems may require coordination depending on the building’s fire strategy, equipment and approved cause-and-effect requirements.
Specify the Interface, Not Just the System Name
Instead of writing only “interface with BMS” or “interface with HVAC,” identify the actual event, signal direction, interface hardware, expected action, responsible contractor and acceptance test.
03 / MATRIX STRUCTURE
What to Put in the Fire Alarm Interface Matrix
The matrix should contain enough information for the design, installation, programming and commissioning teams to understand the intended response without relying on assumptions.
Detector, module, manual station, sprinkler signal or other approved initiating condition.
Identify the fire zone, floor, building or area associated with the event.
Identify the elevator, HVAC, access control, voice evacuation, BMS or other connected system.
Describe the expected response or equipment state following the initiating event.
Document relay contacts, interface modules, network gateways or other approved interface methods.
State whether the connected equipment returns automatically or requires an authorized manual action.
Identify who supplies the interface, performs programming and coordinates testing.
Define how the complete interface will be demonstrated and documented during commissioning.
MATRIX CHECK: Every important initiating event should have a clearly defined response. Avoid rows that identify an interface but do not state the expected action, reset condition or testing responsibility.
04 / RESPONSIBILITY
Coordinate Responsibilities Before Programming
Interface problems often occur when the fire alarm contractor, mechanical contractor, elevator contractor, access-control contractor and BMS integrator each assume that another party is responsible for the connection or programming.
Confirm initiating events, fire alarm outputs, interface modules, programming and fire alarm-side testing responsibilities.
Confirm input requirements, receiving-system programming, equipment response and feedback where applicable.
Coordinate power, cabling, pathways, control wiring and equipment interfaces according to the project scope.
Coordinate end-to-end testing, witness requirements, defect resolution and final documentation.
ENGINEERING NOTE: Avoid vague notes such as “interface by others.” State the signal direction, physical or network interface, supplied hardware, programming responsibility and acceptance test.

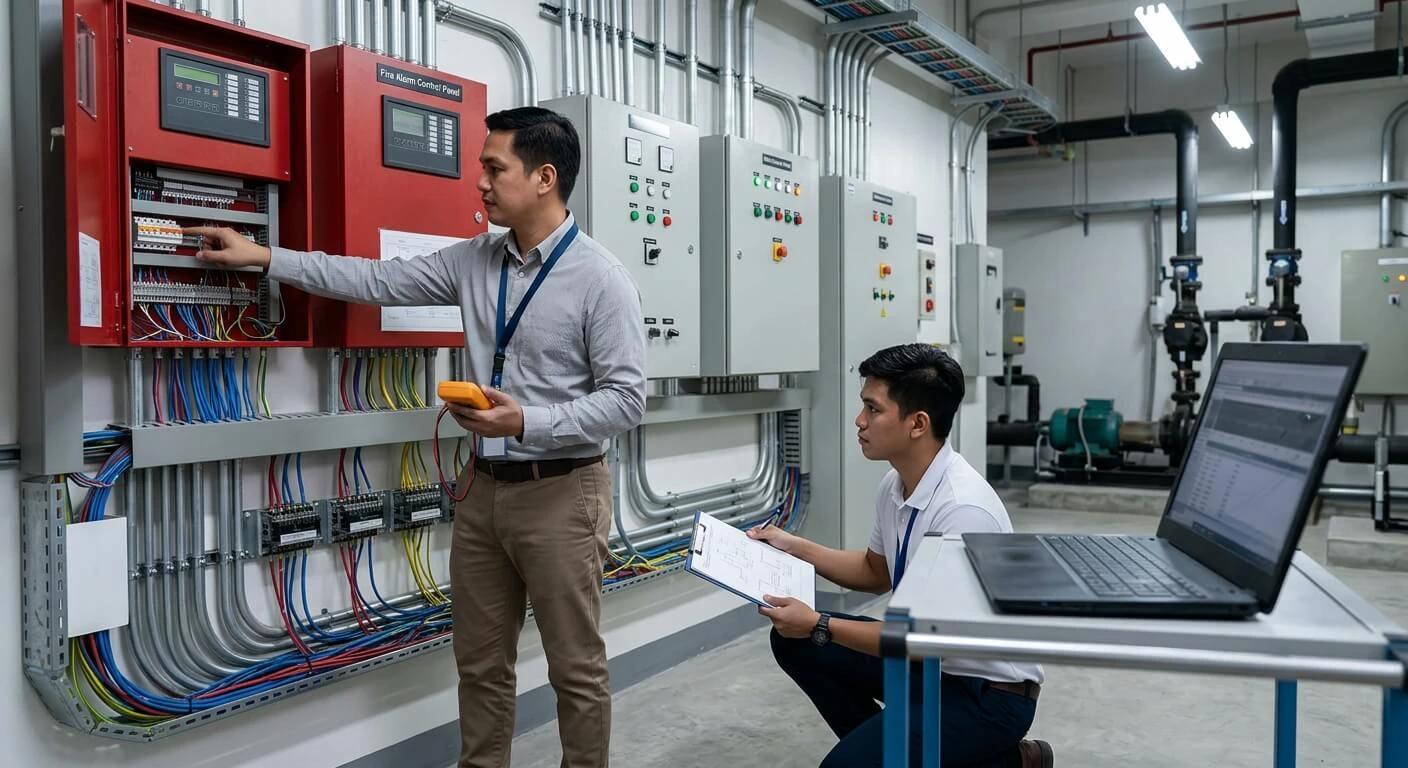

05 / INTEGRATED TESTING
Commissioning the Fire Alarm Interfaces
Integrated testing should prove the complete chain rather than only the relay contact or interface module. The approved initiating event should be activated, the fire alarm response verified, the receiving system observed and the resulting sequence documented.
Initiate
Activate the approved fire alarm event.
Verify
Confirm the correct fire alarm indication and zone.
Interface
Verify the signal reaches the receiving system.
Respond
Confirm the receiving equipment performs the required action.
Reset
Verify the defined reset and recovery behavior.
Document
Record the result, defects and final acceptance status.
A contact can operate correctly while the receiving equipment is programmed incorrectly. End-to-end testing therefore provides a more complete verification of the intended cause-and-effect sequence.
06 / PROCUREMENT CHECKLIST
Fire Alarm Interface Matrix Checklist
- Initiating event or device
- Fire zone or location
- Receiving building system
- Required action or equipment state
- Signal direction
- Interface module or gateway
- Cabling and pathway requirements
- Normal, alarm and reset state
- Programming responsibility
- Equipment supplier responsibility
- Feedback or monitoring requirements
- Witness requirements
- Integrated acceptance testing
- Final documentation and records
07 / PROJECT WORKFLOW
A Practical Fire Alarm Interface Planning Workflow
Survey
Review fire alarm zones, connected systems and existing interfaces.
Define
Identify initiating events and required system responses.
Map
Develop the cause-and-effect matrix and interface responsibilities.
Coordinate
Coordinate fire alarm, mechanical, elevator, security and BMS requirements.
Program
Configure the approved sequences and connected system responses.
Commission
Perform end-to-end testing and document the final results.
08 / RELATED SOLUTIONS
Related Infinite Systems Solutions
Plan fire detection, alarm notification and related life-safety requirements around the project’s building design.
Coordinate emergency audio, paging, voice evacuation zones and fire alarm interface requirements.
Coordinate building monitoring requirements while keeping required life-safety control within the approved system architecture.
09 / FAQ
Frequently Asked Questions
Who prepares the fire alarm cause-and-effect matrix?
Responsibility varies by project, but the matrix should be coordinated among the fire alarm designer, consultants and affected trades before programming and integrated testing.
Can fire alarm signals be sent to the BMS?
Selected status information can be monitored where compatible. Required life-safety control should remain within the approved fire alarm architecture and defined cause-and-effect sequence.
Why should the complete interface be tested?
A contact or interface module can operate correctly while the receiving equipment is programmed incorrectly. End-to-end testing verifies that the intended event produces the required system response.
Should reset behavior be documented?
Yes. The matrix should clearly identify whether equipment restores automatically or requires an authorized manual action after the fire alarm condition is cleared.
What should an interface specification include?
It should identify the initiating event, affected zone, receiving system, required action, signal direction, interface hardware, programming responsibility, reset behavior and acceptance test.
When should the interface matrix be finalized?
It should be coordinated early enough to support equipment selection, shop drawings, programming and installation. Changes should be reviewed and reflected in the commissioning documentation.
