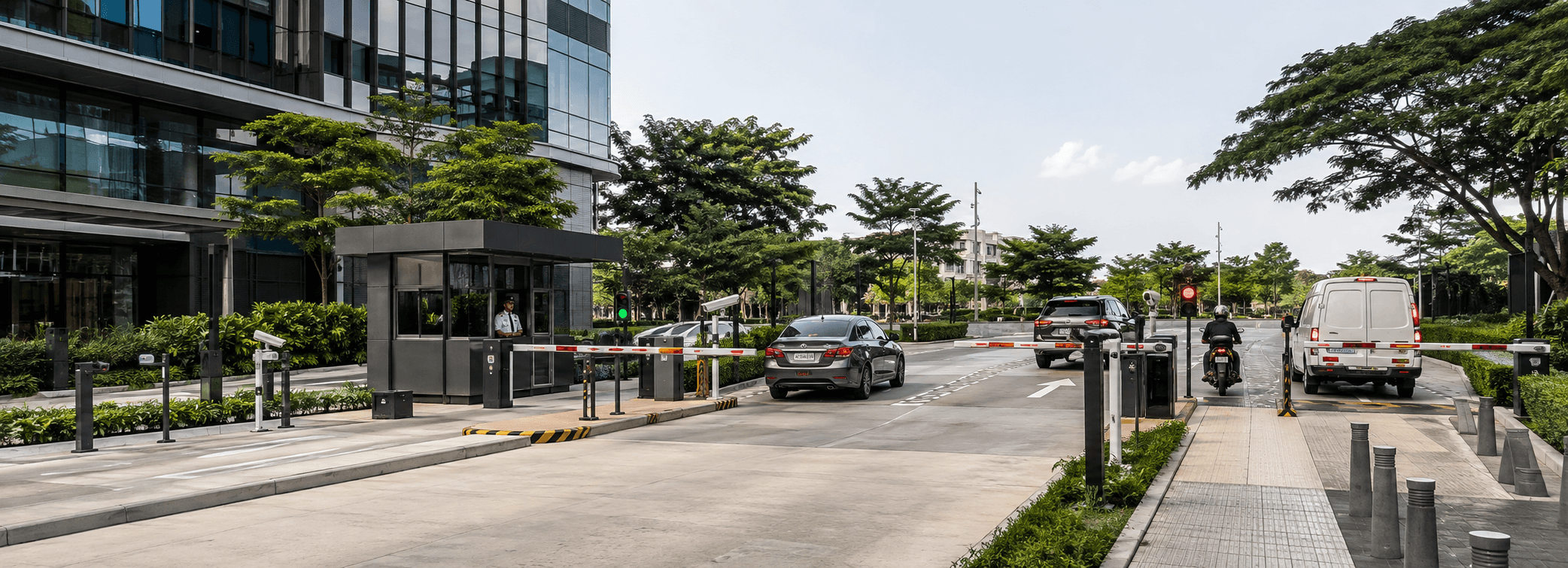

Automated boom gate with RFID and ANPR vehicle access at a Quezon City property

Commercial buildings, condominiums, hospitals, schools, malls, villages and mixed-use developments in Quezon City require different approaches to vehicle access.

A residential entrance may prioritize simple resident RFID access, while a commercial property may need ticketing, parking validation, ANPR, visitor registration and multiple entry and exit lanes.

An automated boom gate controls the physical lane, but it does not independently determine whether a vehicle should enter. Reliable operation depends on the complete system: credential readers, vehicle detectors, barrier controls, safety devices, traffic layout, software, network infrastructure and operating procedures.

The system must also be designed for the property’s actual vehicle mix. Cars, motorcycles, vans, trucks, delivery vehicles and emergency vehicles do not interact with a barrier lane in the same way.

What Is an Automated Boom Gate?

An automated boom gate uses a motorized barrier arm to control a vehicle lane.

The barrier controller receives an approved opening command from a connected device or system, which may include:

Guard push button
Remote control
RFID reader
ANPR system
Ticketing equipment
QR reader
Intercom
Mobile credential
Visitor-management platform
Parking-management software
Access-control system

After receiving authorization, the barrier raises to permit passage. The controller then lowers the arm according to its configured logic and safety inputs.

A boom barrier is not a crash-rated security barrier unless it has been specifically designed, tested and certified for that purpose. Standard parking barriers primarily manage vehicle flow and routine access.

Where Automated Barriers Are Used

Automated boom gates may be suitable for:

Office-building parking
Residential condominiums
Gated communities and subdivisions
Shopping malls
Hospitals
Schools and universities
Hotels
Industrial facilities
Warehouses
Logistics compounds
Government facilities
Staff parking
Delivery and loading entrances
Reserved or tenant parking
Paid parking facilities

The correct barrier, arm length, operating speed and credential method depend on the application.

Parking Barrier Components

A complete vehicle access lane may include:

Barrier operator
Barrier arm
Vehicle detectors
Safety sensors
Credential reader
ANPR camera
Intercom
Traffic lights
Lane controller
Access-control or parking software
Guardhouse workstation
Network switches
Power supply
UPS or backup-power provision
Surge protection
Concrete foundation
Bollards or equipment protection
Road markings
Signage
CCTV coverage

These components must be designed to operate as one coordinated system.

Installing a barrier cabinet and reader without suitable vehicle detection, lane geometry and safety controls can lead to unreliable or unsafe operation.

Choosing the Correct Barrier Operator

Barrier operators vary in speed, arm length, motor design, environmental rating and intended duty.

Selection should consider:

Lane operating hours
Expected transactions
Peak-hour demand
Arm length
Required opening speed
Vehicle type
Indoor or outdoor installation
Wind exposure
Available power
Manual-release procedure
Emergency operation
Accessory load
Manufacturer support
Spare-parts availability
Maintenance requirements

A residential operator designed for occasional use may not be suitable for a busy commercial exit operating throughout the day.

The manufacturer’s specified duty and operating limits should be reviewed for the proposed arm and accessories.

Barrier Arm Types

Different lane conditions may require different arm configurations.

Straight Barrier Arm

A straight arm is commonly used where sufficient overhead and side clearance are available.

It may be suitable for:

Outdoor entrances
Open parking areas
Wide driveways
Commercial and residential lanes

Folding Barrier Arm

A folding arm may be used where a low ceiling prevents a full-length straight arm from rising vertically.

It can be appropriate for:

Basement parking entrances
Covered ramps
Low-clearance vehicle lanes

The folded geometry must be checked carefully against the ceiling, signs, pipes, lights and passing vehicles.

Fence or Articulated Arm

A fence-type or articulated arm may provide a more visible barrier across a lane.

Its additional weight and wind loading must be considered when selecting the operator.

Breakaway or Swing-Out Arm

Some barriers support a breakaway or swing-out arrangement intended to reduce damage if a vehicle strikes the arm.

This does not make the barrier impact-resistant. The mechanism, reset procedure and available accessories depend on the manufacturer.

Vehicle Detection Technologies

Vehicle detectors tell the system whether a vehicle is approaching, waiting or passing through a controlled area.

Different technologies may be used alone or in combination.

Inductive Loops

An inductive loop is a wire installed in a saw-cut or prepared section of pavement. It connects to a loop detector that responds to changes caused by a sufficiently detectable metal vehicle.

Loops may be used for:

Vehicle presence
Barrier safety logic
Exit requests
Queue detection
Direction detection
Passage confirmation

Actual performance depends on:

Loop size and shape
Number of turns
Installation depth
Pavement condition
Lead-in cable
Detector settings
Reinforcement steel
Nearby electrical interference
Vehicle metal mass
Vehicle position

Motorcycles and small vehicles require careful loop design and testing. A loop designed around passenger cars may not reliably detect every motorcycle or tricycle.

Inductive loops detect metal vehicles; they should not be relied upon to detect pedestrians.

Radar Detectors

Radar-based vehicle detectors may be considered where cutting the pavement is undesirable or where the site conditions support an above-ground device.

Performance depends on installation angle, target area, lane geometry, speed and environmental conditions.

Photoelectric Beams

Photoelectric sensors can detect an object interrupting a beam.

They may supplement a vehicle-detection system, but alignment, contamination, rain, sunlight and physical obstruction must be considered.

Video Analytics

Cameras and analytics may be used for vehicle presence, queue monitoring or lane events.

Performance depends on lighting, camera placement, weather, occlusion and software configuration. Video analytics should be tested at the actual site.

Safety Loops and Presence Loops

A vehicle presence loop may be installed near the barrier arm to help prevent the arm from lowering while a detectable vehicle occupies the protected area.

Another detector may be installed before or after the barrier to support authorization, direction or passage logic.

However, two loops are not automatically required or sufficient for every lane. The detector arrangement depends on:

Lane direction
Entry or exit use
Barrier model
Arm position
Vehicle length
Tailgating risk
Available pavement
Traffic speed
Credential location
Site safety assessment

Long vehicles and trailers require special attention because the cab may clear the barrier while another part of the vehicle remains below the arm.

The system should be tested using the expected vehicle types.

Pedestrian Safety

Parking barriers are intended for vehicle lanes, not pedestrian passage.

A vehicle loop may not detect a pedestrian, bicycle or low-metal object. For that reason:

Pedestrians should have a separate designated route.
Walkways should not pass beneath a barrier arm.
Signage and markings should identify vehicle-only lanes.
Guard procedures should address unauthorized pedestrian use.
Additional sensors may be considered where appropriate.
Barrier speed and closing logic should reflect the site risk.

The barrier arm itself should not be treated as a substitute for proper pedestrian separation.

Long-Range RFID Vehicle Access

Long-range UHF RFID can identify an enrolled vehicle credential as it approaches the entrance.

A typical workflow may include:

A tag is assigned to an authorized vehicle.
The reader detects the tag within the configured lane.
The system checks the credential’s validity.
Applicable schedules and access rules are evaluated.
Vehicle-presence and safety conditions are confirmed.
The barrier receives an opening command.
The transaction is recorded.

Practical read distance depends on:

Reader and antenna
Tag type
Tag location
Windshield characteristics
Vehicle size
Lane width
Reader angle
Radio interference
Nearby metal
Vehicle speed
Power settings

The required read distance should be established through site testing rather than assumed from a product’s maximum specification.

RFID Tag Management

Vehicle RFID tags should be managed like access credentials.

The database may include:

Vehicle plate number
Vehicle make and color
Registered owner or user
Tenant or department
Parking entitlement
Validity period
Permitted entrances
Access schedule
Credential status
Issuance and revocation history

A detected tag should not automatically be considered valid forever.

Credentials should be disabled when:

The vehicle is sold
The tenant leaves
The employee separates
Parking privileges expire
The tag is lost
The tag is suspected of transfer or duplication
The registered plate changes
The user no longer requires access

Where practical, the system may compare the RFID record with another vehicle identifier.

ANPR and License Plate Recognition

Automatic Number Plate Recognition, or ANPR, uses a camera and software to capture and interpret a license plate.

ANPR may support:

Registered-vehicle access
RFID and plate comparison
Visitor pre-registration
Parking entry and exit records
Watchlist alerts
Incident investigation
Vehicle search
Exception handling

ANPR accuracy depends on:

Plate condition
Plate type and format
Camera angle
Vehicle speed
Lighting
Headlight glare
Weather
Obstruction
Image resolution
Lane position
Software configuration

Philippine plates vary in age, format and physical condition. Motorcycles also require suitable rear-plate coverage where applicable.

A failed or uncertain plate read should follow a controlled exception procedure rather than automatically granting or denying access without review.

RFID and ANPR Together

RFID and ANPR perform different functions.

Technology	Primary purpose	Limitation
Long-range RFID	Identifies an enrolled electronic vehicle credential	A tag may be transferred or mounted on another vehicle
ANPR	Attempts to read the vehicle’s license plate	Accuracy depends on image and plate conditions
CCTV	Provides visual evidence of the vehicle and event	Does not independently determine authorization
Access database	Applies permissions and schedules	Records must be accurate and maintained
Vehicle detector	Confirms vehicle presence or passage	Does not normally identify the vehicle

For higher-control entrances, the system may compare the RFID credential with the expected plate record. A mismatch can be sent to the guard for verification.

This comparison should not be marketed as infallible because either source may contain errors.

QR Codes, Tickets and Visitor Access

Visitors and delivery vehicles may use:

QR codes
Temporary RFID credentials
Parking tickets
Intercom approval
Guard-issued passes
Pre-registered plate numbers
Mobile credentials
Validated exit tickets

A visitor management system may coordinate the vehicle visit with the host, tenant, delivery schedule or approved destination.

Temporary access should have:

Defined activation and expiration
Authorized entrance
Host or tenant information
Vehicle details
Entry and exit records
Controlled extension procedures
Cancellation and revocation
Exception handling

A visitor credential should not automatically grant access to unrelated pedestrian doors or restricted areas.

Intercom and Guard-Assisted Access

Not every vehicle can be pre-registered.

An intercom allows the driver to communicate with security personnel when:

A credential fails
A visitor is not registered
The plate cannot be read
A delivery arrives outside schedule
A driver needs assistance
The gate is operating manually
An emergency condition exists

The guard should receive enough information to make an informed decision.

Guard-assisted barrier opening should be logged where practical, especially when it overrides a denied or unavailable credential.

Anti-Tailgating Logic

Tailgating occurs when a second vehicle follows an authorized vehicle through the same barrier cycle.

Detection may use:

Multiple loops
Direction logic
ANPR
Radar
Video analytics
Barrier timing
Guard supervision

Anti-tailgating performance depends on vehicle spacing, lane geometry and detector placement.

A secondary loop does not automatically “deny pass-back.” It only supplies a detection input. The controller or parking system must interpret the sequence according to programmed logic.

The response may include:

Holding the arm position
Generating an alarm
Recording an exception
Capturing associated video
Requiring guard review

The system should not lower the arm onto a vehicle merely to prevent tailgating.

Barrier Speed and Traffic Capacity

Barrier opening time affects lane throughput, but it is only one part of the transaction.

Total processing time may include:

Vehicle approach
Queue spacing
Credential detection
Database verification
Ticket issuance
Payment
Visitor approval
Barrier movement
Vehicle acceleration
Pedestrian or crossing conflicts

There is no universal number of vehicles per hour suitable for every barrier lane.

A faster barrier does not solve delays caused by payment, manual visitor verification or poor lane geometry.

Traffic planning should consider:

Peak arrival and departure periods
Queue-storage length
Number of lanes
Entry and exit balance
Reversible lanes
Vehicle mix
Drop-off traffic
Nearby intersections
Guard operations
Payment and validation procedures
Equipment failure

Properties should avoid designing queues that routinely extend into public roads or obstruct pedestrian routes.

Quezon City Site Conditions

Quezon City properties range from dense commercial developments to hospitals, schools, subdivisions and institutional campuses.

Site-specific considerations may include:

Limited driveway depth
Busy frontage roads
Multiple vehicle classes
Motorcycle volume
Delivery trucks
School or hospital peak periods
Drop-off conflicts
Basement ramps
Low ceilings
Rainwater drainage
Outdoor heat and weather
Existing underground utilities
Guardhouse visibility
Pedestrian crossings

The barrier system should be designed around the actual site instead of applying one standard lane detail to every property.

Local permit, traffic, building and fire-safety requirements should be confirmed with the project professionals and relevant Quezon City authorities.

Emergency and Fire-Service Access

A boom barrier must not prevent required emergency access or evacuation.

The appropriate emergency behavior depends on:

Gate location
Approved fire-apparatus access
Security requirements
Barrier mechanism
Power design
Fire alarm system
Guardhouse operation
Local manual release
Property emergency procedures
Approved plans

Possible provisions may include:

Guard-controlled opening
Manual mechanical release
Emergency-service override
Loss-of-power behavior
Fire alarm interface
Backup power
Clearly documented emergency procedures

Not every barrier must automatically rise on every fire alarm signal. An automatic interface should be installed only when required by the approved design and coordinated with the relevant fire-safety professionals.

Similarly, “fail open” is not a universal requirement for every parking gate. Some properties may require controlled operation in a particular emergency scenario.

The final arrangement should comply with the approved fire- and life-safety strategy and applicable requirements under the Revised Fire Code of the Philippines.

Power Failure and Manual Operation

The system should define what happens when primary power is lost.

Possible provisions include:

UPS-supported controller operation
Battery-supported barrier operation
Generator-supported circuits
Manual mechanical release
Guard-operated emergency procedures
A defined fail-safe or fail-secure position
Monitoring of power faults

Backup power should be sized for the intended equipment and operating period.

A UPS may support electronics without providing enough energy for unlimited barrier cycles. Battery condition and actual load should be tested periodically.

Security personnel should be trained to operate the manual release safely.

Network and Offline Operation

A connected parking system may rely on local controllers, servers, cloud services or network links.

The design should confirm:

Whether valid credentials continue working offline
How recent revocations are handled
Whether events are stored locally
How events synchronize after reconnection
What happens when ANPR is unavailable
How visitors are processed during an outage
Whether guards can operate the barrier locally
How equipment faults are reported
How remote support is secured

A network failure should not result in an undocumented or uncontrolled operating condition.

Data Privacy for Plates and Vehicle Records

Plate images, RFID assignments, driver identities, visitor records and parking transactions may involve personal-data processing when they identify or can be associated with an individual.

The responsible organization should establish:

A specific and lawful purpose
Appropriate privacy notices
Access restrictions
Data-minimization measures
Retention and deletion rules
Secure administrator accounts
Controls for searches and exports
Third-party service-provider responsibilities
Incident-response procedures
Processes for correcting inaccurate records
Appropriate CCTV and ANPR signage

The Data Privacy Act of 2012 applies to the overall processing activity. A system is not automatically compliant simply because it uses passwords, encryption or restricted folders.

The operator should determine its applicable obligations with its data protection officer and advisers.

Facial Recognition at Vehicle Entrances

Facial recognition is generally not necessary for ordinary tenant or visitor parking.

If a property is considering driver facial verification for a defined high-security purpose, it should first evaluate:

Whether the processing is necessary and proportionate
Whether a less intrusive credential is sufficient
Camera position and driver visibility
Window tint and reflections
Lighting and weather
Vehicle speed
False matches and failed recognition
Human verification
Biometric-data protection
User notices and alternatives
Enrollment and offboarding

A facial match should not be treated as perfect proof of identity.

For most commercial parking applications, RFID, ANPR, mobile credentials or guard verification may provide a more practical workflow.

Civil Works and Equipment Protection

Barrier performance depends partly on the quality of the civil and electrical works.

The installation should address:

Reinforced concrete foundation
Anchor-bolt layout
Conduit routes
Drainage
Loop saw-cut sealing
Equipment level and alignment
Bollard protection
Guardhouse cable routes
Earthing
Surge protection
Outdoor enclosures
Waterproofing
Road markings
Signage
Access for maintenance

The barrier cabinet should be protected from vehicle impact without obstructing access for servicing.

Underground utilities should be checked before loop cutting or excavation.

CCTV Integration

A CCTV and video surveillance system may record:

Vehicle approach
Barrier passage
Plate image
Driver interaction
Tailgating
Barrier strike
Credential failure
Manual override
Queue conditions

Cameras should be positioned for the intended purpose.

A wide overview camera may show the lane but may not capture a readable plate. ANPR normally requires a camera and angle designed specifically for plate capture.

Time synchronization among the parking system, access control and CCTV supports more accurate event review.

Integration with Building Access Control

Vehicle access may be coordinated with the property’s access-control system.

Possible workflows include:

One tenant record linked to parking entitlement
Employee offboarding revoking both vehicle and door access
Visitor registration creating vehicle and pedestrian credentials
Parking schedule aligned with work schedule
Multi-site credential management

Vehicle and pedestrian permissions should remain separately defined.

A vehicle entering the property should not automatically give the driver unrestricted access to building doors, elevators or restricted areas.

Testing and Commissioning Checklist

Testing should use the property’s actual vehicle types and operating scenarios.

Recommended tests include:

Valid and invalid RFID tags
Different windshield tag positions
ANPR under daytime and nighttime conditions
Motorcycles and tricycles
Passenger cars
Vans
Trucks and long vehicles
Tailgating attempts
Vehicle stopping under the arm
Slow vehicle passage
Reversing vehicles
Visitor QR codes
Ticket issuance and validation
Intercom calls
Manual guard override
Barrier-arm obstruction
Safety-loop operation
Detector failure
Network interruption
Server or software failure
Power interruption
UPS operation
Manual release
Emergency operation
CCTV event association
Access-log recording
Credential expiration
Vehicle-record mismatch

Test results, final settings, exceptions and corrective actions should be documented.

Preventive Maintenance

Parking barriers combine mechanical, electrical and software components that require routine inspection.

Maintenance may include:

Barrier-arm alignment
Motor and gearbox inspection
Spring or balancing-mechanism adjustment
Fastener inspection
Lubrication according to manufacturer instructions
Limit and position testing
Loop-detector testing
Radar or beam alignment
Safety-sensor testing
RFID reader testing
ANPR camera cleaning and focus checks
Traffic-light testing
Intercom testing
Controller and network checks
UPS and battery testing
Manual-release testing
Foundation and cabinet inspection
Drainage inspection
Event-log review
Credential-database review
Emergency-interface testing where applicable

Maintenance intervals should follow the equipment manufacturer’s guidance, traffic volume, environment and observed equipment condition.

Procurement Checklist

Before selecting an automated boom gate, ask:

What vehicle types will use the lane?
What is the expected peak-hour demand?
How much queue-storage space is available?
What arm length and opening speed are required?
Is the location indoors or outdoors?
What is the expected operating duty?
Are motorcycles and tricycles included?
Which credential methods will be used?
Is ANPR required?
How will visitors and deliveries be processed?
Which vehicle detectors and safety devices are included?
How will pedestrians be separated?
How will tailgating be handled?
What happens during network or power failure?
What emergency operation is required?
Is fire alarm integration actually required by the approved design?
What civil works and loop cutting are included?
What equipment protection is required?
How will plate and RFID records be protected?
Which integrations and software licenses are required?
What spare parts, warranty and maintenance are included?

A site survey and traffic-flow review should be completed before final quantities and lane layouts are approved.

Frequently Asked Questions

What is the difference between a boom gate and a parking barrier?

The terms are often used interchangeably. Both generally refer to a motorized arm controlling a vehicle lane.

Can a boom gate stop a vehicle from crashing through an entrance?

A standard parking barrier is not normally crash-rated. Sites requiring vehicle-impact protection need equipment specifically designed and certified for that purpose.

Can RFID automatically open the barrier?

Yes, after the system validates the credential and applicable access rules. Vehicle-presence and safety conditions should also be included in the opening and closing logic.

How far can a long-range RFID reader detect a tag?

The practical distance depends on the reader, antenna, tag, vehicle, mounting, interference and lane design. It should be confirmed through site testing.

Can inductive loops detect motorcycles?

Properly designed and configured loops may detect motorcycles, but performance depends on loop geometry, detector settings, pavement and motorcycle position. Actual motorcycles should be included in testing.

Can a vehicle loop detect pedestrians?

Inductive loops respond to detectable metal vehicles. They should not be relied upon as pedestrian detectors.

Is ANPR always accurate?

No. Accuracy depends on plate condition, angle, lighting, speed, obstruction and system configuration. Exception procedures are still necessary.

Can RFID and ANPR be used together?

Yes. The system may compare an RFID credential with the expected vehicle plate for additional verification.

Should every barrier automatically open during a fire alarm?

Not necessarily. Emergency behavior depends on the gate’s location and approved fire-safety strategy. Any fire alarm interface should be coordinated with the relevant professionals.

What happens when power fails?

Depending on the design, the barrier may use backup power, generator supply or manual release. The intended behavior must be defined and tested.

Can a barrier work when the network is offline?

Some systems can continue processing locally stored credentials. Offline capability depends on the controller and system architecture.

Can the parking system integrate with access control?

Yes. Employee, tenant and visitor records may be coordinated across parking and pedestrian access while maintaining separate permissions.

Does Infinite Systems install boom gates in Quezon City?

Yes. Infinite Systems can assess, design, supply, install, integrate and maintain suitable automated boom gates, RFID, ANPR and parking barrier systems for Quezon City properties.

Planning an Automated Boom Gate System in Quezon City?

Infinite Systems can assess your driveway, vehicle mix, traffic volume, lane geometry, RFID or ANPR requirements, visitor workflow, safety devices, civil works, network requirements and emergency operation.

We can develop a complete solution covering barrier selection, vehicle detection, access credentials, CCTV integration, testing and preventive maintenance.

Request a Parking Barrier Site Assessment

Automated Boom Gates and Parking Barriers for Quezon City Properties
