Structured Cabling and Data Infrastructure for Sta. Rosa, Laguna

Reliable connectivity begins with infrastructure that is planned for the building, its users, and the systems it must support.

For offices, factories, warehouses, business-process outsourcing facilities, schools, and mixed-use developments in Sta. Rosa, Laguna, structured cabling may carry far more than desktop network traffic. The same infrastructure can support wireless access points, IP phones, CCTV cameras, building-management controllers, time-attendance terminals, and selected access-control equipment.

Performance depends on more than the cable category printed on the box. Cable routes, termination quality, equipment-room conditions, power availability, testing, labeling, firestopping, and documentation all affect the reliability of the completed installation.

A properly planned cabling system should support present requirements while allowing reasonable room for expansion and technology changes.

What Is a Structured Cabling System?

Structured cabling is an organized system of cables, connectors, pathways, racks, patch panels, and telecommunications spaces.

A typical installation may include:

• An entrance facility for incoming telecommunications services
• A main distribution frame or equipment room
• Intermediate distribution frames or telecommunications rooms
• Copper or fiber backbone cabling between rooms
• Horizontal cabling from telecommunications rooms to outlets
• Patch panels, fiber enclosures, and cable-management hardware
• Work-area outlets and patch cords
• Equipment racks or cabinets
• Grounding and bonding provisions
• Labels, cable schedules, test records, and as-built drawings

The exact architecture depends on the size and use of the property. A small office may require only one telecommunications cabinet, while a factory or campus may need multiple telecommunications rooms connected by fiber.

Systems That May Use the Cabling Infrastructure

A structured cabling platform can support several building technologies:

• Computers and business applications
• IP telephones
• Wireless access points
• IP CCTV cameras
• Network printers
• Time-attendance terminals
• Building-management and automation controllers
• Internet of Things devices
• Selected access-control panels and networked readers
• Digital signage
• IP-based public-address equipment

Not every low-voltage device should be connected using ordinary data cabling. Electric locks, door contacts, request-to-exit devices, alarm circuits, and certain controllers may require dedicated security or life-safety wiring.

The cabling design should follow the requirements of the connected equipment and the applicable project specifications.

Cat6 or Cat6A: Which Copper Cable Should You Use?

Cat6 and Cat6A are both used in commercial structured cabling. The correct choice depends on the required applications, cable length, electromagnetic environment, installation space, equipment, and expansion plan.

Cat6A should not automatically be specified for every outlet. Conversely, selecting Cat6 only to reduce initial cost may limit future applications in locations where higher bandwidth is expected.

A useful design process evaluates each outlet type instead of applying one specification indiscriminately throughout the property.

Understanding Cable-Length Limits

For conventional balanced-copper structured cabling, the horizontal permanent link is commonly designed for a maximum of approximately 90 metres. The complete channel, including equipment and work-area patch cords, is commonly limited to approximately 100 metres.

These limits should be confirmed against:

• The selected cabling standard
• The cable category
• The network application
• Ambient temperature
• Power over Ethernet requirements
• Patch-cord configuration
• Manufacturer specifications
• Project test limits

When the required route exceeds the permitted copper distance, an additional telecommunications room or a fiber-optic connection may be necessary.

Shielded or Unshielded Cabling?

Shielded cabling is sometimes considered for factories, equipment rooms, or areas with substantial electromagnetic interference. However, it is not automatically the best solution for every industrial site.

A shielded system requires compatible components and properly designed bonding and grounding. This includes the cable, connectors, patch panels, patch cords, and cabinets.

An incomplete or poorly installed shielded system may fail to provide the expected benefit.

Before selecting shielded cabling, the designer should assess:

• Proximity to motors, drives, transformers, and high-current conductors
• Cable-route separation from electrical services
• The availability of appropriate bonding infrastructure
• Manufacturer installation requirements
• The connected equipment
• Environmental conditions
• The possibility of using fiber instead

Fiber may be preferable where electrical isolation, longer distance, high bandwidth, or immunity to electromagnetic interference is important.

Fiber-Optic Backbone Cabling

Fiber is commonly used between the main equipment room and satellite telecommunications rooms. It may also connect separate buildings or distant sections of a large facility.

Common options include multimode and single-mode fiber. The selection should consider:

• Required link distance
• Present and future bandwidth
• Network transceiver compatibility
• Available pathways
• Number of required strands
• Expansion capacity
• Environmental exposure
• Testing and maintenance requirements
• The expected service life of the installation

OM3 or OM4 multimode fiber may suit some building-backbone applications. OS2 single-mode fiber may be appropriate for longer links or designs requiring greater flexibility for future network speeds.

Installing both fiber types is not automatically necessary. The decision should be supported by the network architecture and lifecycle requirements.

Fiber Redundancy Requires More Than Spare Strands

Spare fiber strands can provide expansion or replacement capacity, but they do not automatically create redundancy.

True route resilience may require:

• Physically separate cable paths
• Separate risers, ducts, or building entrances
• Redundant network switches
• Independent power sources
• Appropriate network protocols
• Tested failover procedures

Two fiber cables installed in the same conduit remain vulnerable to the same excavation, fire, water, or pathway damage.

Planning the MDF and IDF Rooms

The main distribution frame and intermediate distribution frames are critical operating spaces. They should not be treated as leftover storage areas.

Each room should be evaluated for:

• Rack and cabinet capacity
• Front and rear service clearances
• Cooling and ventilation
• Clean electrical power
• UPS requirements
• Grounding and bonding
• Lighting
• Physical access control
• Water and environmental risks
• Cable-entry locations
• Horizontal and vertical cable management
• Fiber and copper termination space
• Expansion requirements
• Firestopping around cable penetrations

Network equipment generates heat, and equipment density may increase after the building is occupied. Cooling and power capacity should therefore be assessed using the planned equipment load rather than only the room’s initial condition.

Cable Pathways and Containment

Cable trays, conduits, sleeves, wire baskets, raised floors, and risers provide physical support and protection for the cabling system.

Pathway design should address:

• Required cable capacity
• Manufacturer bend-radius requirements
• Allowable pulling tension
• Separation from electrical conductors
• Sources of electromagnetic interference
• Support intervals
• Accessibility for installation and maintenance
• Fire-rated walls and floors
• Outdoor or corrosive conditions
• Future expansion

A fixed 40% cable-tray limit should not be presented as a universal rule. Allowable fill depends on the pathway type, applicable code, project standard, cable size, heat considerations, and future-capacity requirements.

The design should define an appropriate maximum fill level and reserve capacity for the specific installation.

Firestopping Cable Penetrations

When cabling passes through a fire-rated wall or floor, the opening may need to be restored using an approved firestop system that is suitable for:

• The wall or floor assembly
• The opening size
• The cable type and quantity
• The penetrant configuration
• The required fire rating
• The selected firestop manufacturer’s installation details

General-purpose foam or sealant should not be assumed to be an acceptable firestop material.

The completed project may require records such as:

• The location of each penetration
• Photographs before and after sealing
• The installed firestop-system reference
• Product documentation
• Installer records
• Identification labels
• Inspection results where required

Requirements must be coordinated with the project’s architect, fire-safety professionals, building administration, and authorities having jurisdiction.

Power over Ethernet Planning

Power over Ethernet allows compatible network switches to power equipment through the communications cable.

Common PoE devices include:

• Wireless access points
• IP cameras
• IP telephones
• Intercom stations
• Selected access-control devices
• Building-automation controllers
• Sensors and other networked devices

A PoE-ready cabling design should consider:

• The power requirement of each device
• The switch’s total PoE power budget
• Cable category and conductor size
• Cable bundles and heat accumulation
• Ambient temperature
• Patch-panel and connector compatibility
• Equipment-room cooling
• UPS runtime
• Future device replacement

A switch with enough network ports may still have insufficient power capacity for all connected devices. Port count and PoE budget should be checked separately.

Cabling for Wi-Fi Systems

Wireless networks still rely on physical cabling. Each wireless access point normally requires a data connection and, in many installations, PoE.

The outlet plan should be coordinated with an RF-based wireless design rather than placing access points according to visual symmetry alone.

The design may consider:

• Expected user density
• Building materials
• Equipment and shelving
• Ceiling height
• Interference
• Roaming requirements
• Application bandwidth
• PoE needs
• Future wireless standards

Some projects provide additional cable capacity at selected access-point locations to simplify expansion or equipment replacement. Whether this is justified depends on the design and budget.

CCTV and Access-Control Connectivity

IP CCTV cameras commonly use structured copper or fiber infrastructure. However, camera type, distance, power demand, surge exposure, outdoor conditions, and network architecture must be evaluated before installation.

Access-control systems may also use the building network for controller communication and system administration. However, readers, locks, door contacts, request-to-exit devices, and life-safety interfaces may use dedicated cabling.

Network availability should never be assumed to replace required local door operation, emergency-release functions, or fire-alarm interfaces.

The cabling, security, fire-alarm, electrical, and network designs should be coordinated before installation.

Structured Cabling in Industrial Facilities

Factories and warehouses in Sta. Rosa and the surrounding Laguna industrial areas may present conditions not normally found in conventional offices.

These may include:

• Electrical noise
• Motors and variable-frequency drives
• High temperatures
• Dust and moisture
• Chemicals or corrosive materials
• Vibration
• Long cable routes
• Outdoor transitions
• Vehicle movement
• Difficult maintenance access

The design may require:

• Industrial-rated enclosures
• Protected pathways
• Fiber-optic links
• Outdoor-rated or armored cables
• Surge protection
• Environmental sealing
• Additional grounding and bonding
• Physical separation from high-energy equipment

Equipment ratings should match the actual environment. Ordinary indoor cable and office-grade cabinets may not be suitable for exposed industrial locations.

Testing: Continuity Is Not Enough

A basic continuity test only confirms that conductors are connected. It does not establish that an installed link meets the performance requirements of the selected cable category.

Copper certification testing may evaluate:

• Wiremap
• Length
• Propagation delay
• Delay skew
• Insertion loss
• Return loss
• Near-end crosstalk
• Power-sum crosstalk
• Other parameters required by the selected test limit

Testing should use the permanent-link or channel configuration specified for the project. Reports should identify:

• The cable or outlet ID
• The selected category and test limit
• Pass or fail status
• The test instrument
• The tester serial number
• Calibration information
• The date of testing
• The tested endpoints

Failed links should be corrected and retested rather than omitted from the handover package.

Fiber Testing

Fiber testing may include:

• Polarity verification
• Link length
• Optical-loss measurement
• Connector inspection
• End-face cleaning
• Optical time-domain reflectometer testing when specified

OTDR testing is useful for locating events and faults, but it does not replace all other acceptance tests. The correct test method depends on the link type and project requirements.

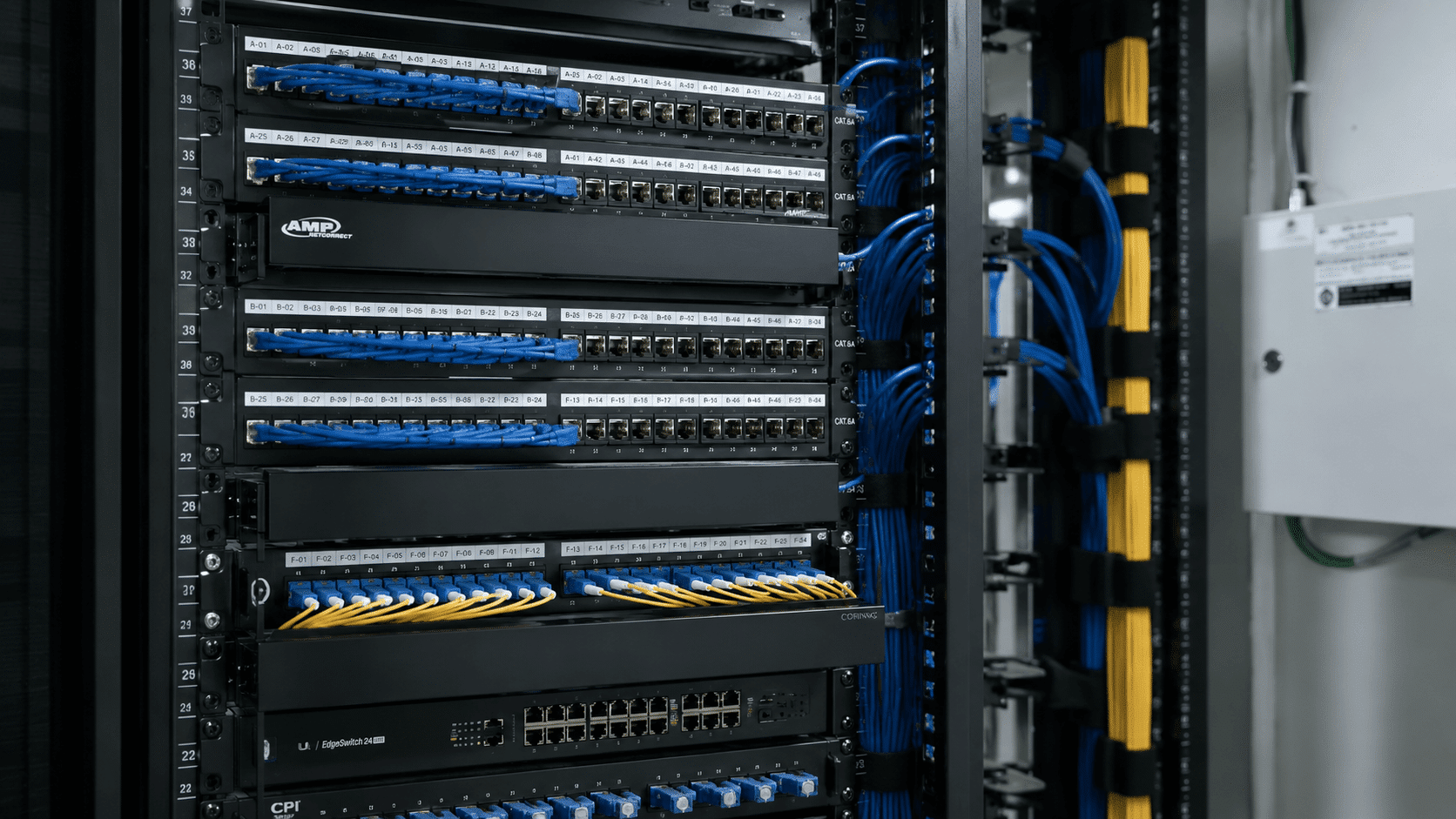

Labeling and Administration

A cabling system becomes difficult to maintain when outlets, patch panels, racks, pathways, and fiber strands are not consistently identified.

A practical labeling system should provide unique identifiers for:

• Telecommunications rooms
• Equipment racks and cabinets
• Patch panels
• Copper ports
• Work-area outlets
• Fiber enclosures
• Fiber strands
• Backbone cables
• Pathways
• Grounding components where applicable

Labels should match the cable schedules, floor plans, test reports, and port records.

The exact administration method can be based on a recognized standard such as the ANSI/TIA-606 series or on an approved project-specific convention.

Required Handover Documentation

A completed cabling project should include more than installed cables.

The handover package may contain:

• Approved shop drawings
• As-built floor plans
• Riser diagrams
• Rack elevations
• Outlet and cable schedules
• Copper certification reports
• Fiber-test results
• Equipment and material schedules
• Patch-panel records
• Fiber-strand assignments
• Firestop records where applicable
• Grounding and bonding records where applicable
• Manufacturer product information
• Warranty documents
• Outstanding-item list
• Operation and maintenance recommendations

Documentation helps the building team troubleshoot problems, relocate users, add devices, and manage future renovations.

Manufacturer Warranties and Certification

A long-term manufacturer system warranty should not be assumed simply because branded cable has been installed.

Eligibility may depend on:

• Use of an approved end-to-end component system
• Installation by a manufacturer-authorized contractor
• Compliance with design and installation requirements
• Completion of specified certification tests
• Submission and acceptance of test data
• Registration of the completed installation
• Warranty exclusions and application limits

The scope and duration of any warranty should be confirmed in writing before procurement.

Does a PEZA Location Require a Special Cabling Standard?

A facility’s location inside a PEZA-registered economic zone does not, by itself, create one universal structured-cabling specification for every project.

Applicable requirements may come from:

• The building owner or landlord
• The industrial-estate administration
• The tenant’s corporate standards
• The project consultant
• The network-equipment manufacturer
• The local building and fire authorities
• PEZA or other agencies when relevant to the project
• The electrical and telecommunications design

The contractor should confirm site-access procedures, work permits, testing requirements, documentation, firestopping, and inspection responsibilities before work begins.

Claims such as “PEZA compliant” should only be used when the applicable requirement and approving authority are clearly identified.

Cabling Standards and Project Specifications

Projects may reference standards relating to:

• Generic telecommunications cabling
• Pathways and telecommunications spaces
• Cabling administration
• Grounding and bonding
• Data-centre infrastructure
• Optical-fiber installation and testing
• Electrical and fire-safety requirements

Standards are updated periodically. The contract documents should identify the required standard, edition, test method, and acceptance criteria.

The project’s approved drawings and specifications remain essential because a general standard cannot account for every site condition.

Structured Cabling Does Not Provide Cybersecurity by Itself

Structured cabling provides physical connectivity, but it does not secure the network automatically.

Cybersecurity and network controls may include:

• Network segmentation
• Virtual LAN configuration
• Authentication
• Port-security policies
• Device management
• Firewall rules
• Firmware maintenance
• Monitoring and logging
• Controlled access to cabinets and equipment rooms
• Disabling unused network ports

These functions should be coordinated with the organization’s information-technology and cybersecurity teams.

Recommended Project Process

1. Site Survey and Requirements Review

Review floor plans, user counts, applications, equipment locations, existing pathways, telecommunications rooms, power, cooling, and site restrictions.

2. Outlet and Device Planning

Define the number and location of workstation outlets, wireless access points, cameras, controllers, phones, printers, and other endpoints.

3. Backbone and Room Design

Determine MDF and IDF locations, copper-distance limits, fiber routes, rack sizes, power, UPS, cooling, grounding, and expansion capacity.

4. Pathway Coordination

Coordinate cable trays, conduits, sleeves, risers, fire-rated penetrations, ceiling access, electrical separation, and other building services.

5. Shop Drawings and Material Approval

Prepare cable schedules, floor layouts, rack elevations, riser diagrams, labeling conventions, product submittals, and testing requirements.

6. Installation

Install pathways, cables, racks, patch panels, outlets, fiber enclosures, grounding components, and firestop systems according to the approved design.

7. Testing and Correction

Test each copper and fiber link using the specified method. Correct failed links and repeat the required tests.

8. Labeling and Documentation

Complete labels, as-built drawings, cable records, test reports, and equipment schedules.

9. Handover and Maintenance Planning

Review the completed system with the client, identify spare capacity, explain patching and administration, and establish maintenance procedures.

Common Structured Cabling Problems

Frequent installation and operational problems include:

• Cable routes exceeding the allowable channel length
• Data cables installed too close to power conductors
• Excessive pulling tension or bend-radius violations
• Overfilled conduits and trays
• Unprotected cable penetrations
• Improper firestop materials
• Unlabeled outlets and patch panels
• Incomplete certification reports
• Patch cords blocking equipment airflow
• Telecommunications rooms used for general storage
• Insufficient cooling or UPS capacity
• Fiber connectors contaminated during installation
• Mismatched cable and connector categories
• Shielded cable installed without appropriate bonding
• Network redundancy using the same physical pathway
• Undocumented changes after handover

Many of these issues are easier and less expensive to prevent during design than to correct after occupancy.

Preventive Maintenance for Cabling Infrastructure

Structured cabling is generally passive, but it still benefits from periodic inspection.

Maintenance may include:

• Checking racks and cabinets for physical damage
• Inspecting patch-cord routing
• Removing abandoned patch cords
• Confirming labels remain readable
• Reviewing room temperature and cleanliness
• Checking UPS condition
• Inspecting grounding and bonding connections
• Cleaning fiber connectors before reconnection
• Reviewing unused and active ports
• Updating drawings and cable records
• Retesting links affected by renovation or damage
• Confirming that firestop systems remain intact after changes

Any move, addition, or change should be added to the cabling records.

Procurement Checklist

Before awarding a structured cabling project, confirm:

• The number and types of outlets
• Cat6, Cat6A, and fiber requirements
• Permanent-link or channel test configuration
• Copper and fiber test limits
• MDF and IDF locations
• Rack and cabinet requirements
• Pathway scope
• Firestopping responsibility
• Electrical, UPS, and cooling requirements
• Grounding and bonding scope
• Labeling convention
• Required shop drawings
• Required as-built documents
• Warranty coverage and exclusions
• Approved manufacturers
• Installer qualifications
• Phasing and operating-hour restrictions
• Work-permit and site-access requirements
• Restoration of ceilings, walls, and finishes
• Removal or management of abandoned cable
• Handover and maintenance responsibilities

A detailed scope makes competing proposals easier to compare and reduces change orders during construction.

Frequently Asked Questions

Is Cat6A always better than Cat6?

Cat6A supports higher-performance applications, but it is larger, more expensive, and may require additional pathway and termination considerations. The correct selection depends on the application, distance, environment, PoE load, and expected lifecycle.

Can Cat6 support 10 Gigabit Ethernet?

Cat6 may support 10 Gigabit Ethernet over limited distances and under suitable channel conditions. Cat6A is designed for 10 Gigabit Ethernet over the full standards-based channel. The installed link should be tested against the required application and category.

What is the maximum copper-cable distance?

A horizontal permanent link is commonly limited to approximately 90 metres, while a complete channel is commonly limited to approximately 100 metres. The exact limit should be verified against the applicable standard, application, temperature, and project configuration.

When should fiber be used?

Fiber may be appropriate for building backbones, long-distance links, inter-building connections, high-bandwidth requirements, or locations affected by electromagnetic interference.

Do industrial facilities always need shielded cable?

No. Shielded cabling may be helpful in certain environments, but it requires compatible components and appropriate bonding. Fiber or better route separation may be a more suitable solution in some locations.

What is cable-certification testing?

Certification testing evaluates whether an installed link meets the electrical performance requirements of the selected cable category and test standard. It is more comprehensive than a simple continuity check.

Is every fiber link required to undergo OTDR testing?

Not necessarily. The required fiber tests depend on the project specification and link type. Optical-loss, length, polarity, connector inspection, and OTDR testing may be used individually or in combination.

Can structured cabling support CCTV?

Yes. Many IP cameras use copper or fiber network infrastructure. Camera power, distance, outdoor exposure, bandwidth, surge protection, and switch capacity must still be considered.

Can access-control devices use the same cabling?

Some networked access-control panels and readers may connect to the IP network. Locks, door contacts, exit devices, emergency-release circuits, and other components may require dedicated wiring.

Can an existing building be retrofitted?

Yes, subject to a site survey. Ceiling access, occupied areas, pathway capacity, fire-rated assemblies, hazardous locations, operating schedules, and restoration work should be evaluated before installation.

Do two backbone cables provide redundancy?

Only if the design eliminates shared points of failure. Cables installed through the same conduit or riser can be damaged by the same incident. Redundancy may require diverse routes, switches, power, and network configuration.

Does cabling include a 25-year warranty?

Only when the specified manufacturer program, products, installer authorization, testing, registration, and other conditions are satisfied. Warranty terms should be confirmed before procurement.

Can Infinite Systems provide structured cabling in Sta. Rosa?

Infinite Systems can assess, design, supply, install, test, and document structured cabling and related building-technology infrastructure for suitable projects in Sta. Rosa, Laguna, and other serviceable locations. Final scope depends on the site survey and project requirements.

---

Planning a Structured Cabling Project in Sta. Rosa?

Infinite Systems can help assess your outlet requirements, MDF and IDF locations, copper and fiber backbones, pathways, racks, Wi-Fi infrastructure, CCTV connectivity, access-control integration, testing, labeling, and handover documentation.

The process begins with a review of your property, applications, equipment, expansion plans, and applicable building requirements.

Request a Structured Cabling Site Assessment

---

Explore Related Building and Infrastructure Solutions

• Structured Cabling Systems
• Structured Cabling Frequently Asked Questions
• CCTV and Video Surveillance Systems
• Access Control Systems
• Building Management Systems
• Automation Solutions
• Time Attendance Systems
• PA, BGM and Voice Evacuation Systems
• Preventive Maintenance Services
